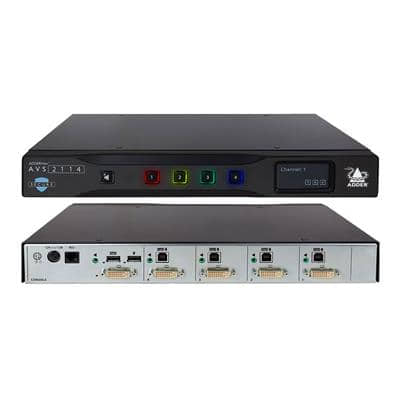

ADDERView® Secure AVS-2114 DVI 4-port Secure KVM switch

Product ID: AVS-2114

Brand: ADDER Technolog...

Download PDF

Secure KVM switch for sharing single-head DVI video, USB keyboard and mouse, plus analog audio between four computers spanning multiple security classification levels.

ADDERView® Secure switches enable a KVM plus audio desktop to be shared between different classification level computers. Designed for superior usability, the switches feature configurable LED buttons and a real-time status display.

  • No Shared RAM Between Channels
  • The keyboard and mouse processor is powered down and reset at each switchover to stop shared RAM leakages. All data buffers are actively cleared once they have been used.
  • Automatic Switching (Configuration)
  • Free-flow KVM and audio control between ports without the need to press any buttons. Simply move the mouse between windows.
  • Hardware Anti-Tampering
  • Holographic anti-tampering labels protect the product’s enclosure, providing a clear visual indication if it has been opened or compromised.
  • Restricted USB Function
  • The USB ports will only accept HID (Human Interface Devices), such as keyboards and mice. Other devices, such as USB storage drives, are actively prohibited.
  • Audio Hold
  • Assign the audio port to a specific computer while switching the KVM to other computers. Useful when a user needs to listen to audio from one computer, while working on another.
  • Uni-Directional Audio
  • Enforces computer-to-speaker, one-way flow of sound through uni-directional optical data diodes. Prevents eavesdropping and line-in re-tasking by blocking speaker-to-computer communication.
  • Industry Recognized
  • NIAP PP 4.0 Certified and TAA Compliant
Maximum Resolution 1920 x 1200
Frame Rate 60
Colour Depth 8 bpc

Computer Connections

USB B 4× 2.0 HID Emulation

Console Connections

USB A 2× 2.0 HID Emulation

Serial Ports

Serial Connection
Serial Standard RS232
Serial Connection Type (console) RJ12 (6p6c)

Audio Connections

Audio Type Analog
Channels 2
Audio In Ports 1× 3.5mm jack
Audio Out Ports 1× 3.5mm jack
Audio Direction Output only

Network Support

10/100 Support No


Operating Temperature 0 - 40 °C / 32 - 104 °F
Storage Temperature -20 - 60 °C / -4 - 140 °F
Operating Humidity (%) 0% - 80% (non-condensing)
Storage Humidity (%) 0% - 80% (non-condensing)
Temperature Regulation Fanless

Power Source

12V 3-pin
Input Power Supply PSU 2.5A
Power Additional Information 100 - 240V AC, 47/63Hz12V DC 30W output from power supply unit

Physical Design

Construction Material Robust metal construction
Width 344mm / 13.54in
Height 44mm / 1.73in
Depth 171mm / 6.73in
Weight 1.6kg / 3.53lb

Front Panel Features

Multi color status LEDs
E-Paper Display


OS Compatibility Windows, Linux, macOS, All known operating systems

Approvals and Standards

Approvals CE, cTUVus, FCC, UKCA
Standards EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B

Ordering Information

Code Description
AVS-2114 ADDERView Single head secure 4-port switch

What's in the Box?

1× 4 port switch
1× Power supply unit with universal mains cable
1× Quick start guide
