ADDERLink® INFINITY 101T DP
ADDERLink® INFINITY 101T DP

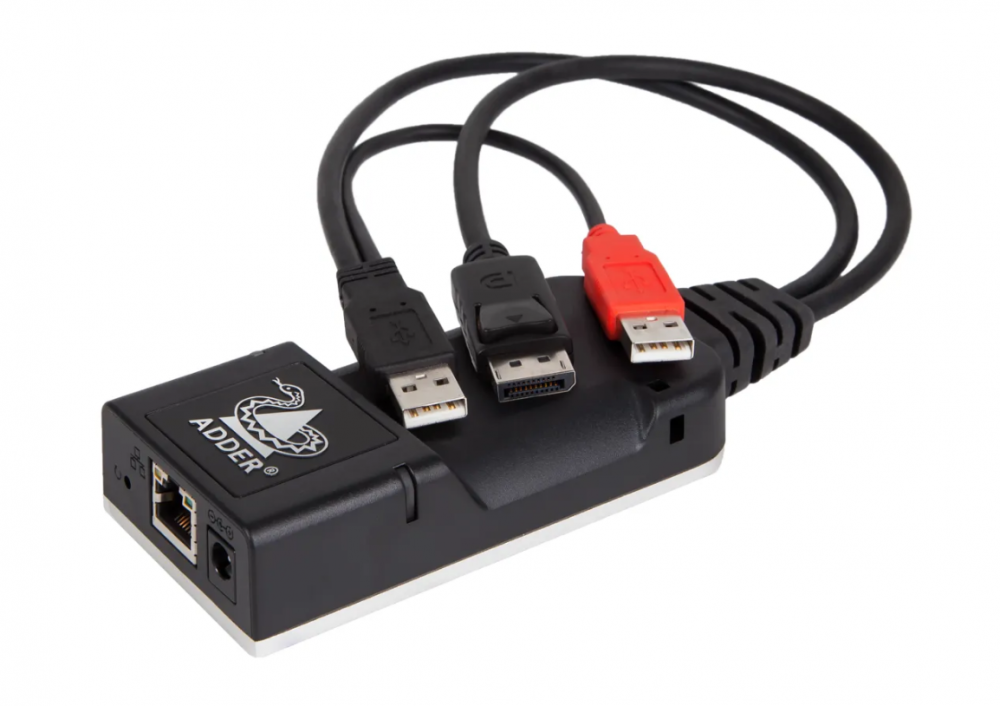

ADDERLink® INFINITY ALIF101T DP Transmitter

Product ID: ALIF101T-DP

Brand: ADDER Technolog...

Download PDF

High performance ZeroU™ IP KVM dongle for extension or matrix of video, audio and USB over a single cable.

ADDERLink® INFINITY 101T (ALIF101T) is a high performance ZeroU™ IP KVM extender with matrix capability that enables the use of standard IT infrastructure to extend computers away from the user environment.

ZeroU™ Form Factor

The ADDERLink INFINITY 101T (ALIF101T) takes ZeroU of rack space in the server room allowing for ultimate flexibility and ease of installation.



Perfect Digital Video, Real-Time Control

Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF101T provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.



USB Powered

The device can be powered from USB. This means there is no need to provision for an external PSU. Options for powering from an external PSU or redundant PSU are also available.



USB 2.0 with Class Control

Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.



Support for Dithered Video

Allows analog or noisy video to pass through the system, along with computers, that dither the video to enhance the perceptive image quality. Some Mac computers use this technique.



ADDERLink INFINITY Matrix

With the addition of the ADDERLink INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

Video resolutions
  • The system supports resolutions up to 2560x1600 @60Hz

Operating/storage conditions

  • Operating temperature: 0°C to 50°C/122°F
  • Storage temperature: -10 to 60°C/140°F
  • Storage and operating relative humidity: 10-90% non-condensing
  • Altitude: <3000m>
  • MTBF: >500,000 hours

Power

  • USB power: 2x USB2.0 (2x 500mA @5V) 5W
  • External power: 5VDC, 1A, (LPS)
  • Typical power consumption: 3W
  • BTU: 10.2BTU/hr

Physical Design

  • Dimensions: (L)110mm/4.3” x (W)55mm/2.17” x (D)25mm/1” with 30cm/11.8” cable length
  • Weight: 0.2kg/0.4lb
  • Materials: ABS and aluminium construction

Connectors

  • Computer: 1x DisplayPort™, 2x USB Type-A
  • Ethernet: 1x 8p8c (RJ45)
  • Power: 2.5mm socket
Specification
  • USB: USB2.0 Low, full and hi-speed
  • USB features: Keyboard, mouse, touch and hard drives
  • USB device seen as: 7 or 13 port hub
  • Max video resolution: Up to 2560x1600 @60Hz
  • Audio: Bi-directional USB audio 2 channel 16bit 48KHz
  • DisplayPort™ Audio: 2 channel linear PCM
  • Ethernet: 1GbE (No 10/100 support)
  • Requires source to be DisplayPort™ Dual-Mode (DP++) compliant

Packing Box

  • Dimensions: (L)292mm/11.5“ x (W)245mm/9.6” x (D)55mm/2.1”
  • Weight: 0.5kg/1.1lb

Cable Type Recommendations

  • Cat5e and above

Cable Length Rules

  • Ethernet specifications rules apply 100m/300ft maximum run

Approvals/Compliance

  • CE and FCC
